Kingfisher
Research ASV platform
I spent a big part of my PhD working on this robot: a surface vessel that already has served well previous researchers in the DREAM Lab. The application was deceptively simple: get it to autonomously find and collect floating trash on the water. The reality was a lot of work integrating perception, reinforcement learning-based control, hardware, and lots of field tests.
The clip above shows the final result: an RL policy, trained entirely in simulation, controlling the real robot to capture floating waste. The policy was deployed zero-shot from Isaac Sim. No fine-tuning on real data.
Getting there meant working on pretty much every layer of the stack, with frequent field tests to evaluate progress and prioritize improvement efforts.
The robot

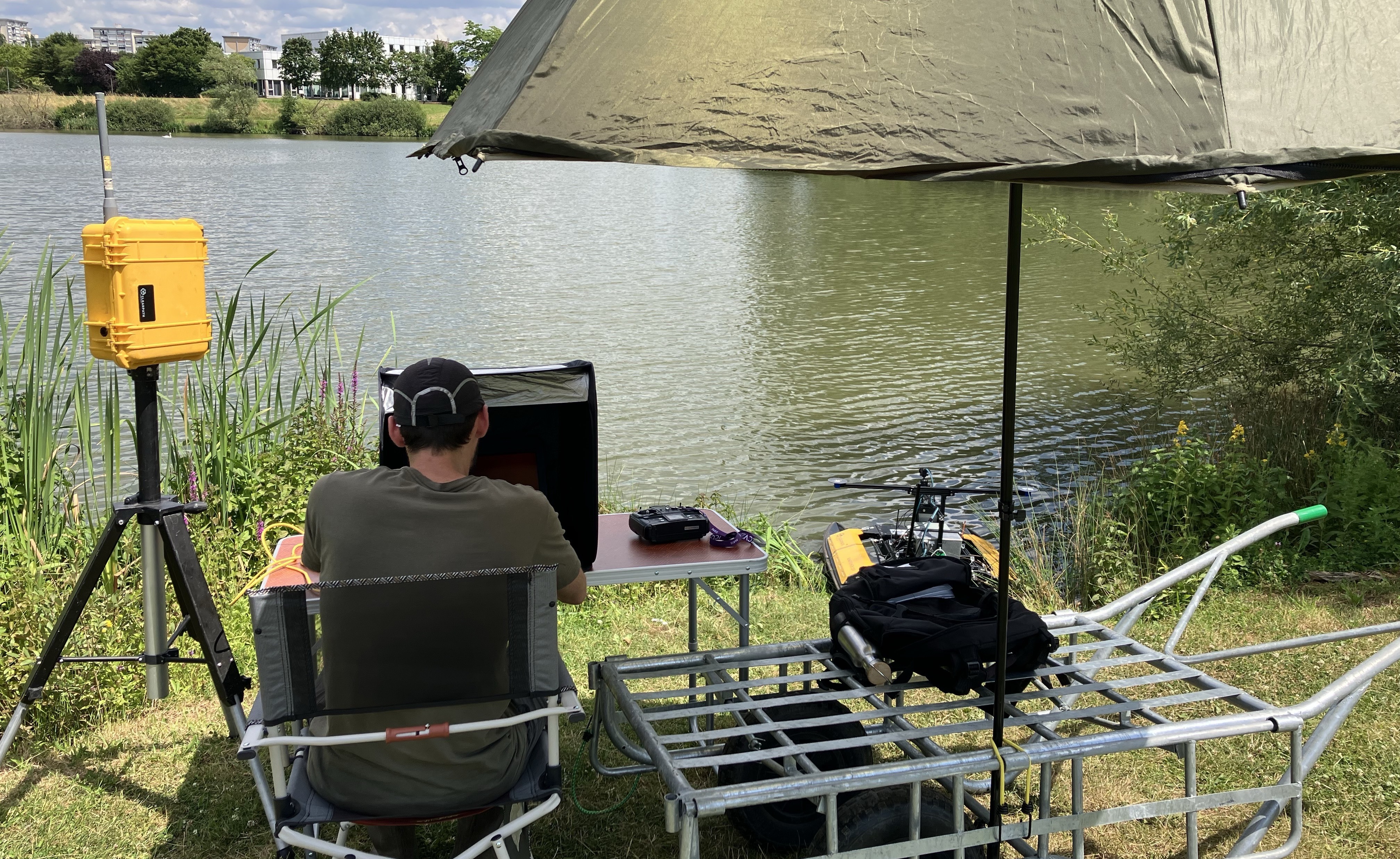

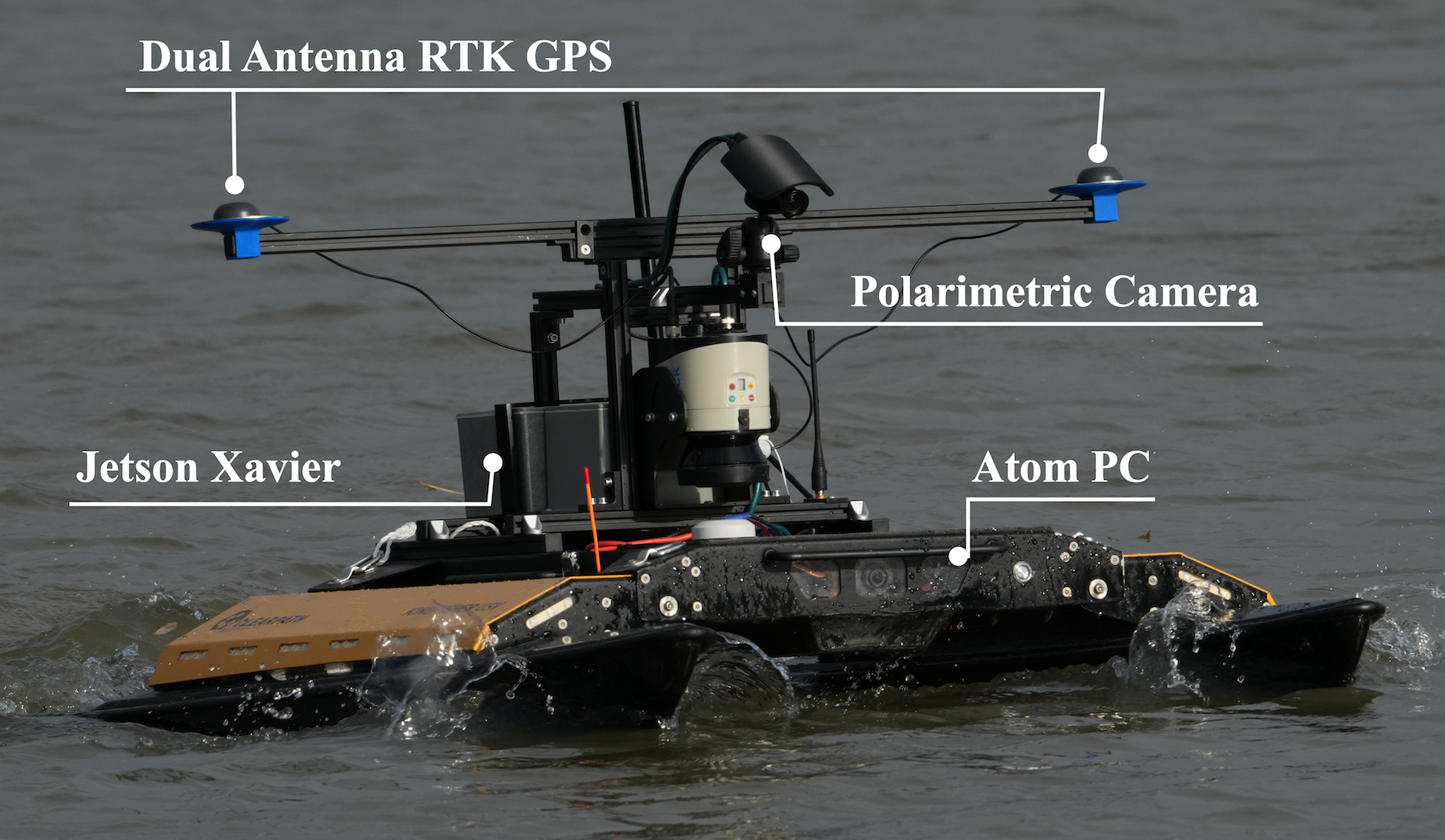

Clearpath Kingfisher, ~35 kg, twin thrusters, research platform. We tested it at Lac Symphonie in Metz, which became an office extension for most of my PhD.
Perception

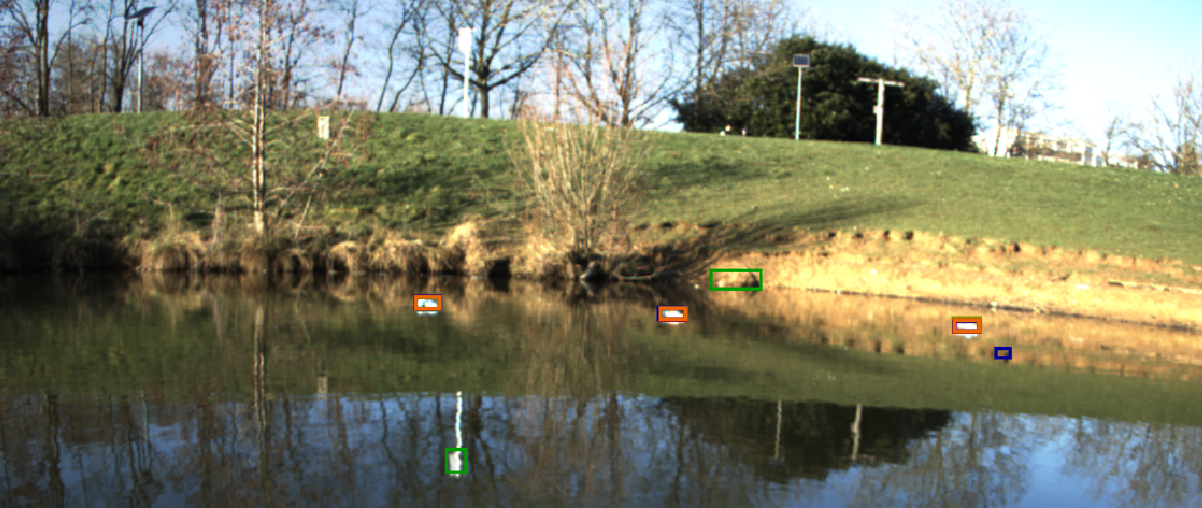

Detecting floating waste sounds straightforward until you put a camera on a moving boat. Reflections, glare, ripples, changing weather. The same plastic bottle can look completely different under different illumination conditions and off-the-shelf perception models struggled.

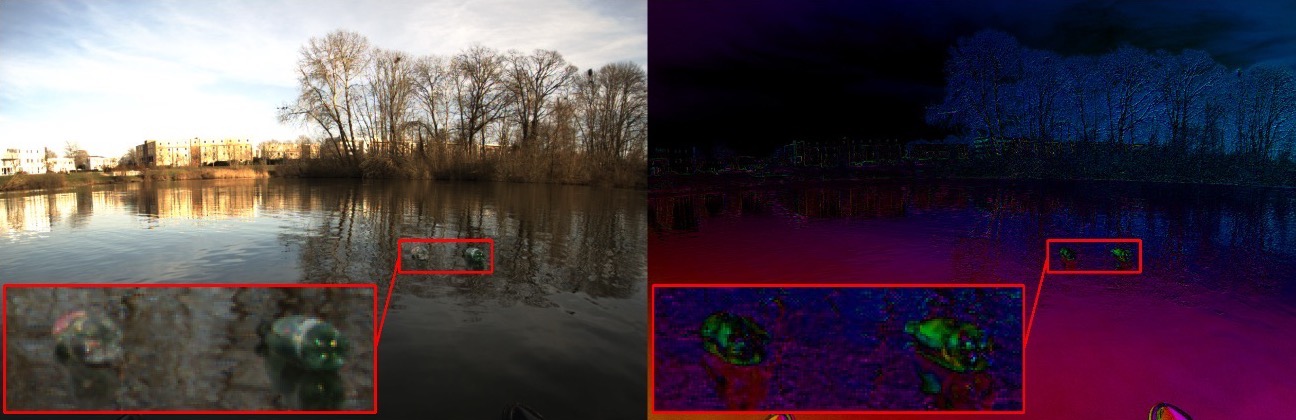

To get around this, I worked on a polarimetric camera setup that exploits the polarization properties of water reflections to separate real bottles from the background reflections. That work became the PoTATO dataset ECCV 2024 Workshop and later a fusion study published at VCIP 2025.
The dataset is publicly available: see the PoTATO github repository for more details.
Reinforcement learning-based control
The control policy was trained entirely in Isaac Lab, then deployed zero-shot on the real robot. Getting that to work consistently despite complex dynamics and external disturbances was the core contribution of my PhD.
The work led to two papers worth pointing at:
- IROS 2024: Explains the methodology and sim-to-real experiments.
- W-FR 2025: Field tests for robustness evaluation and MPC comparison.
Integration

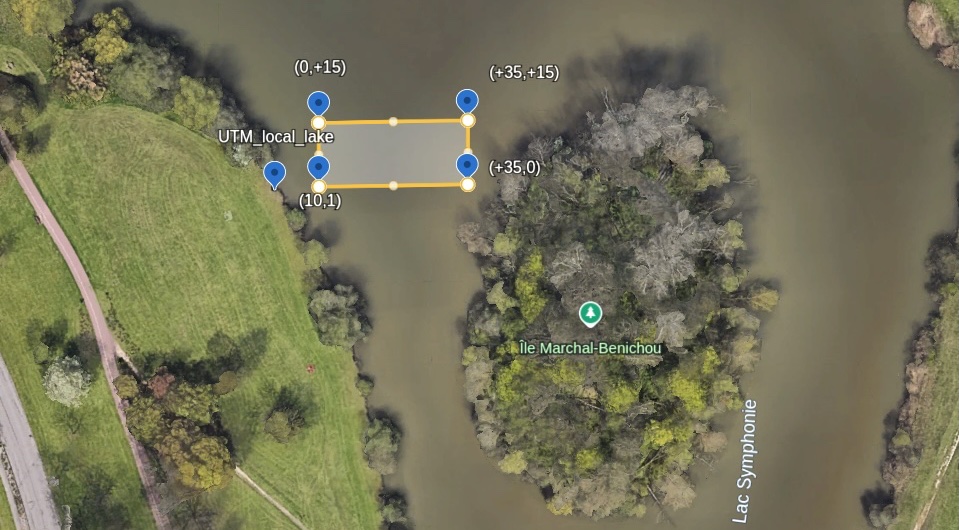

Combining the perception and control learned models was the last part of my PhD. Here the challenge was putting it all together in a way that it worked reliably.

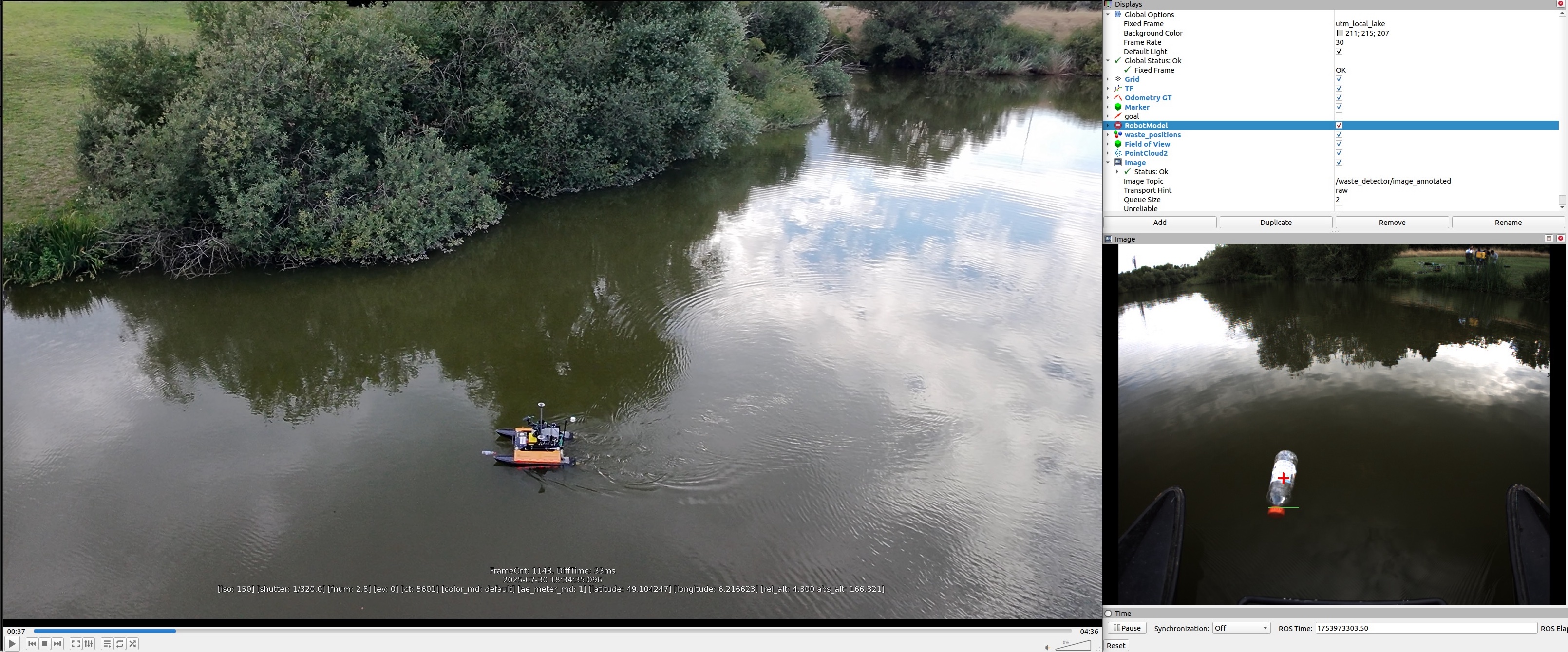

The final results are briefly shown in the following video
A detailed explanation of the methodology and field tests is available in a T-FR publication.
Hardware

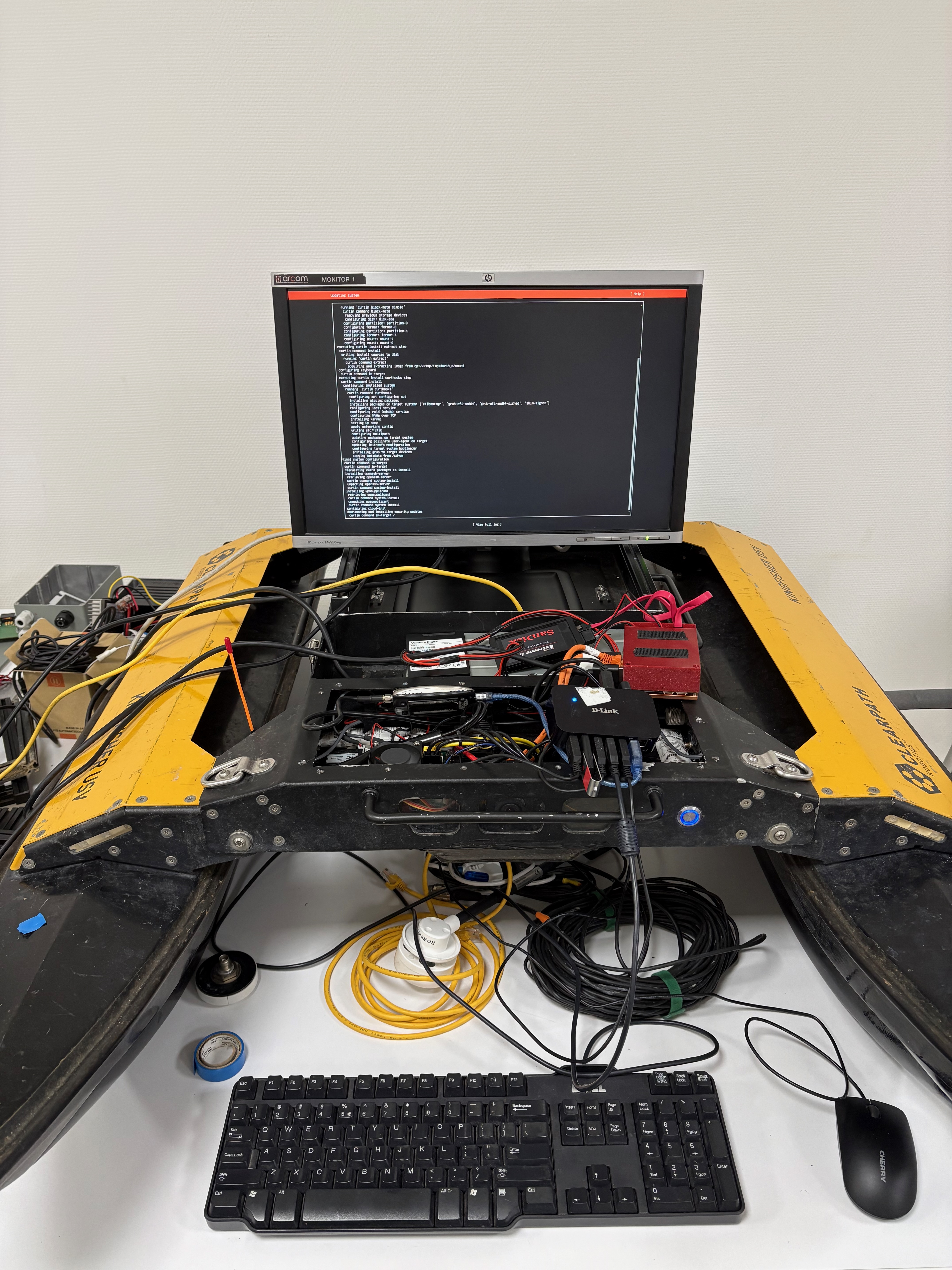

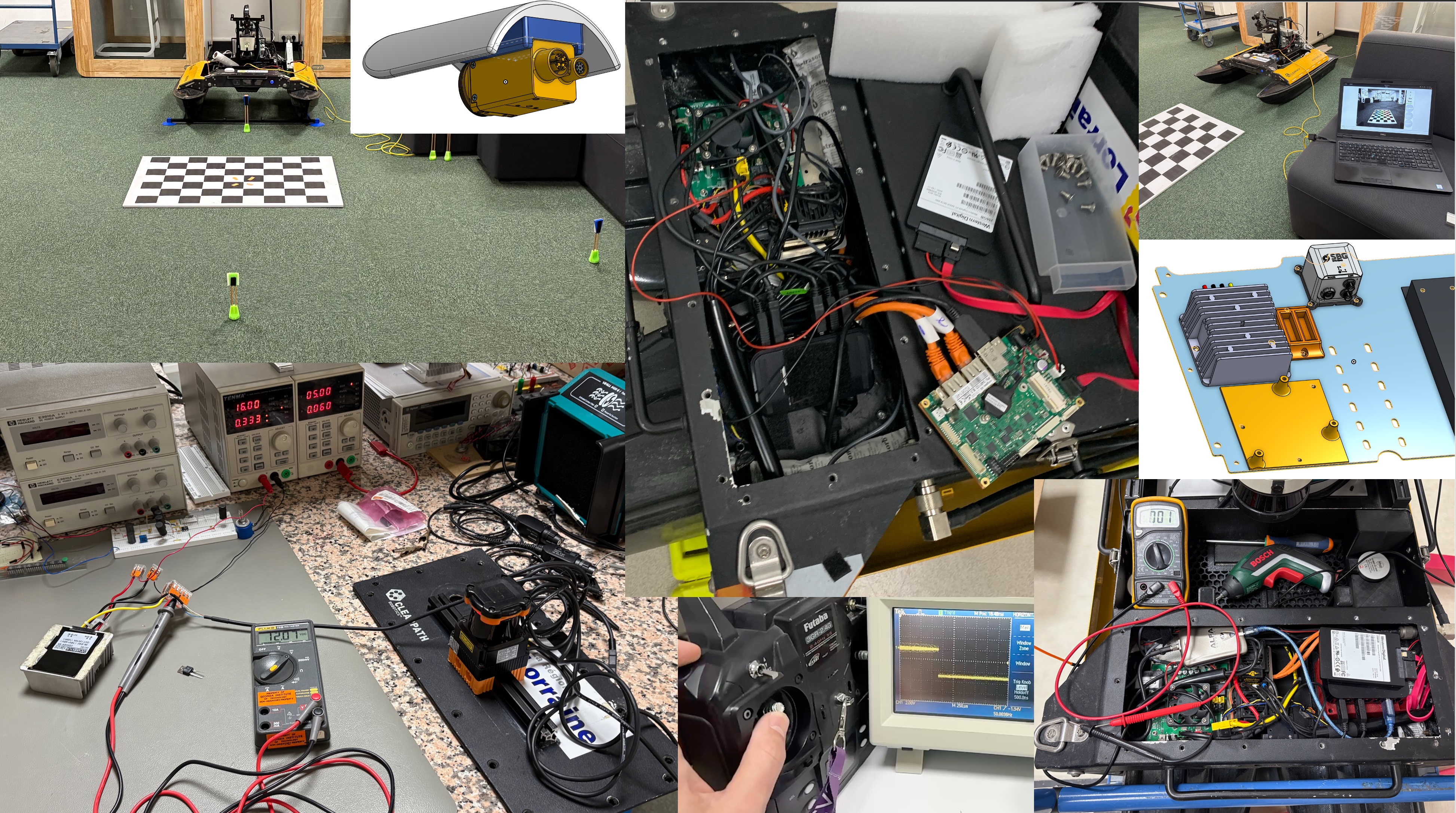

A research robot rarely arrives ready for the work you want to do. Making all the modifications needed was time consuming and didn’t lead directly to publications, but it was quite rewarding. Some of the interesting things I learned during the project:
- Reverse-engineering the proprietary MCU. I spent a fair amount of time failing to get the control policy to work until I decided to plug an oscilloscope in the motor controller output to figure out PPM signals sent by the proprietary control board as a response to the ROS-level input commands. Reverse engineering and modeling the rate-limit implemented in the proprietary controller was a key factor to improve simulation fidelity and get things right.
- Integrating RTK GPS Sounds straight-forward, but there is an interestingly high number of things that can go wrong.
- Designing 3D-printed mounts for new sensors, attachment points, camera mount, antenna supports, etc..
- Network configuration for reliable telemetry between the robot, the base station, and a laptop running training/evaluation.
- Sensor calibration for usable perception data.

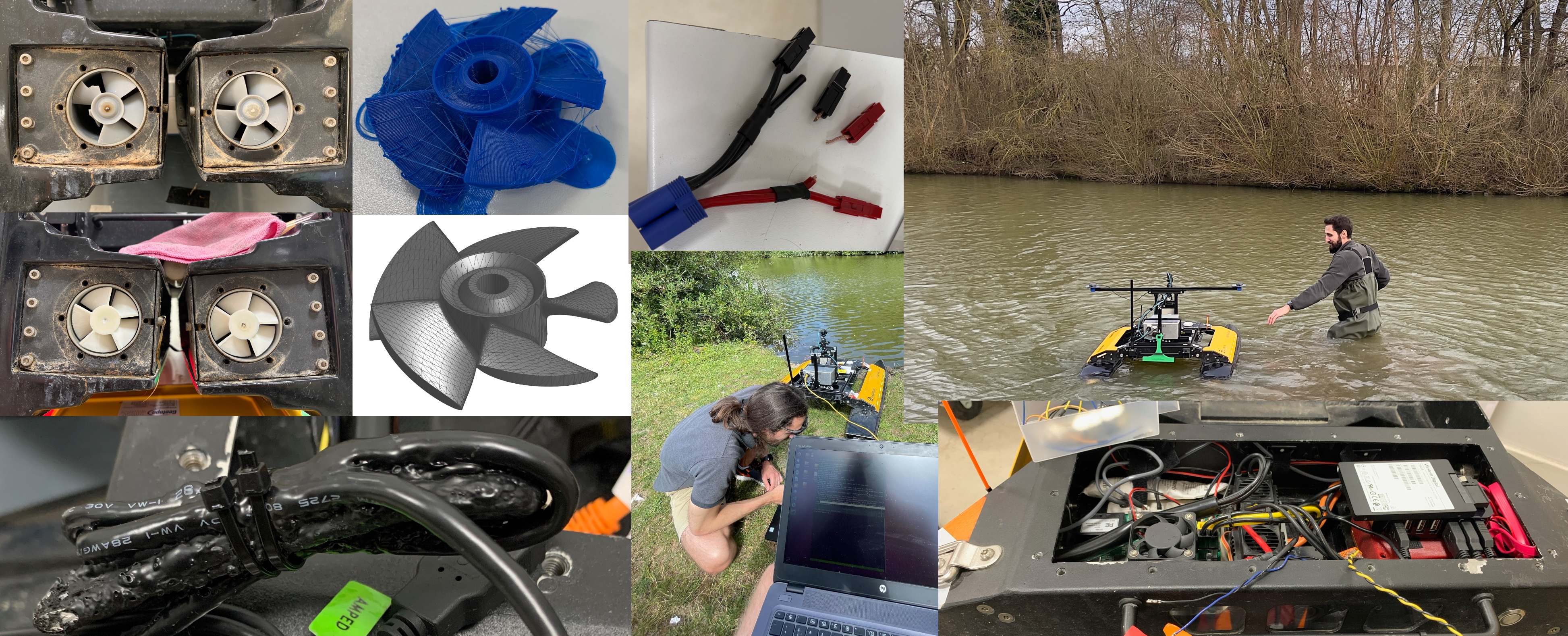

- Lots of cabling, waterproofing, and small electrical fixes that aren’t glamorous but are the difference between a working test day and going home with a wet, dead robot.
Field robotics is quite humbling. Your battery will always die sooner than your estimate and of course many other things can (and will) go wrong.
Over time, the field tests became way smoother and easier to execute. Towards the end I could even fly the drone to record the experiments (fist video). It is true the Kingfisher was already quite autonomous at this point…
What’s next…

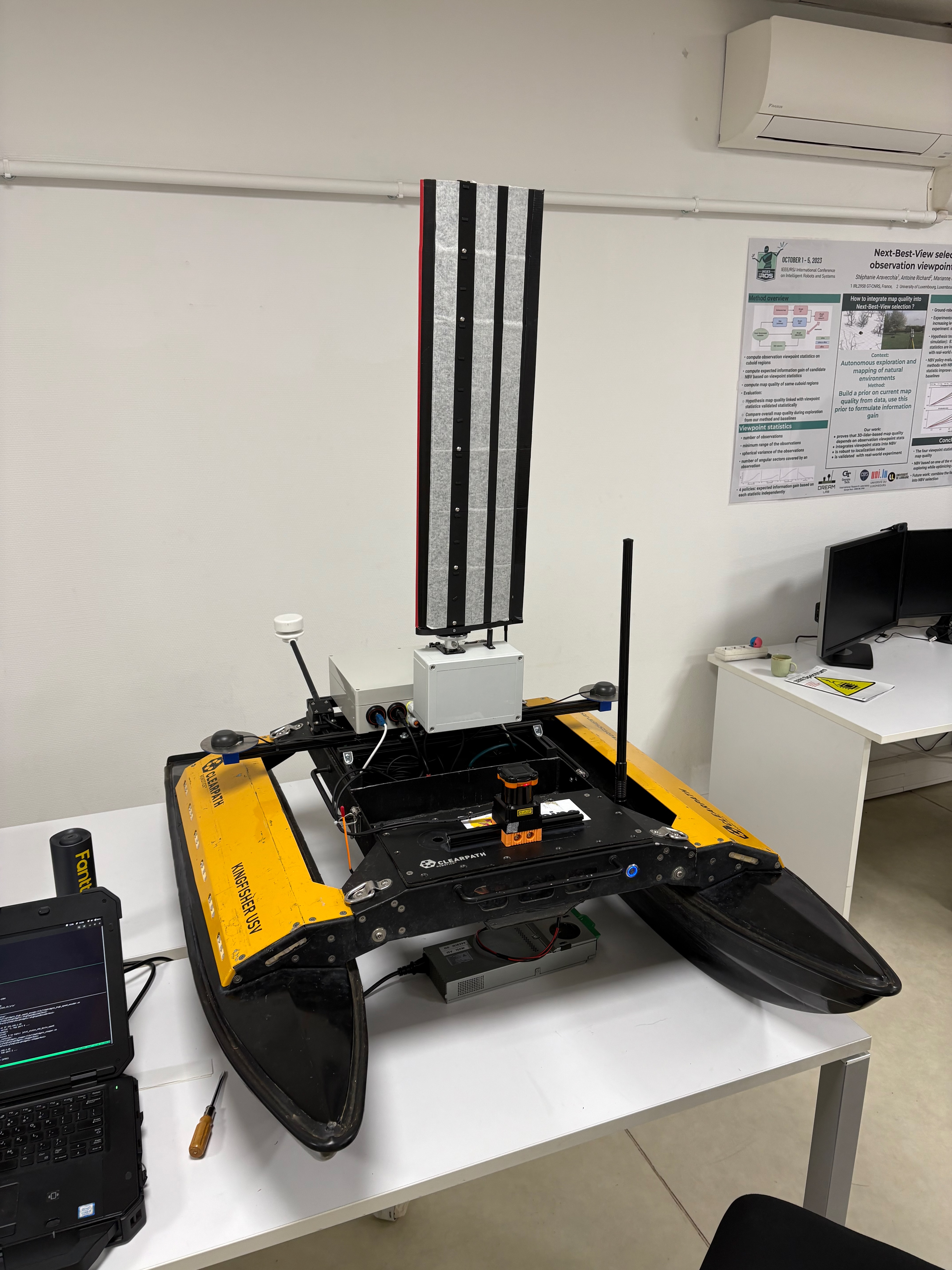

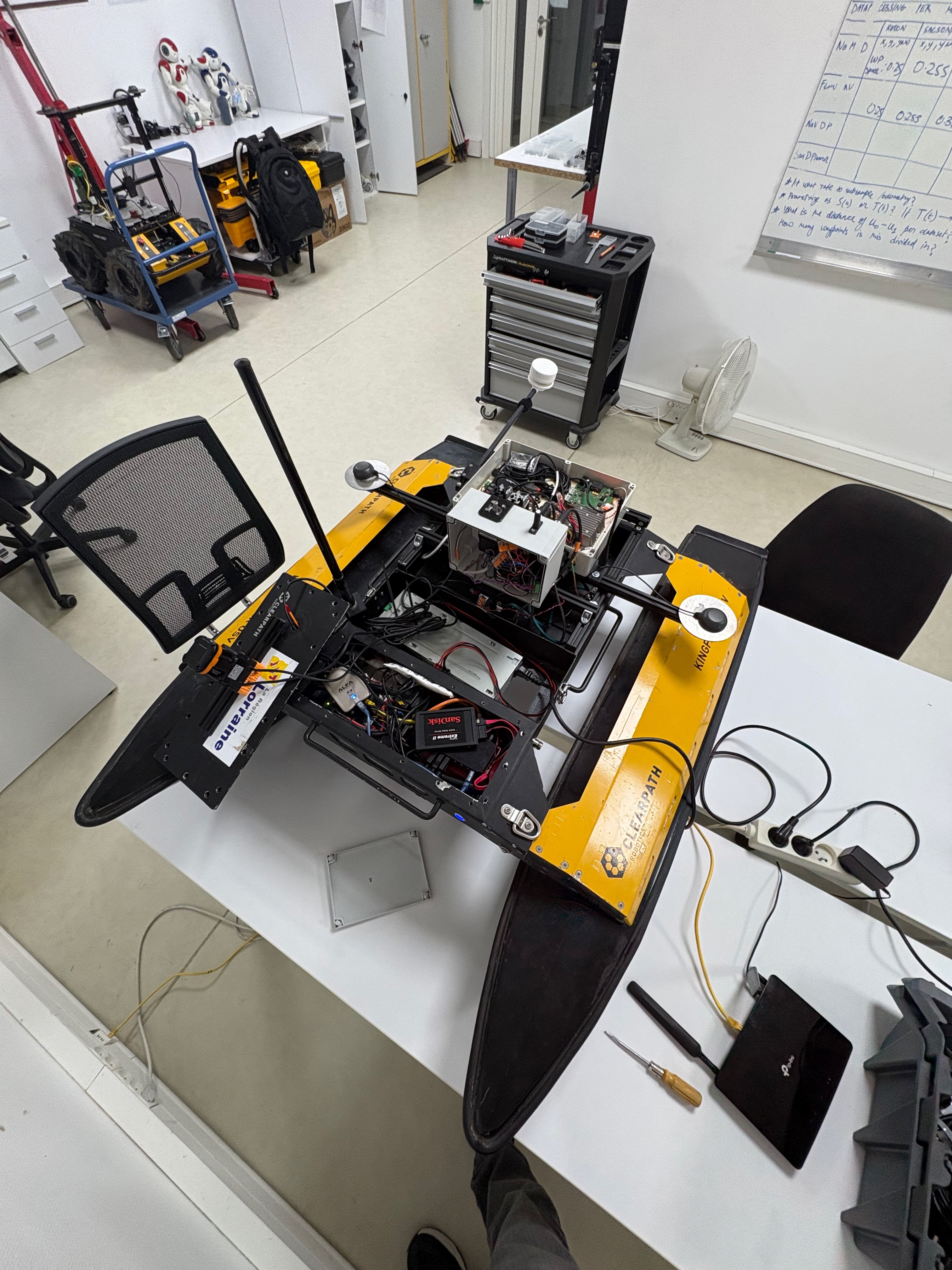

PhD is done. The Kingfisher has served me well but it isn’t retired. I am now preparing it for new research adventures on energy-efficient sail navigation.
All these field deployments taught me lessons that simulation alone never could, about test protocols, controller behavior under real disturbances, sensor limitations, and calibration. Many failure modes only showed up once everything was running together on the real robot, and it took repeated iterations to trace the root causes and fix them properly. If there’s one takeaway, it’s that progress in autonomous systems depends as much on careful integration as on algorithmic novelty.
